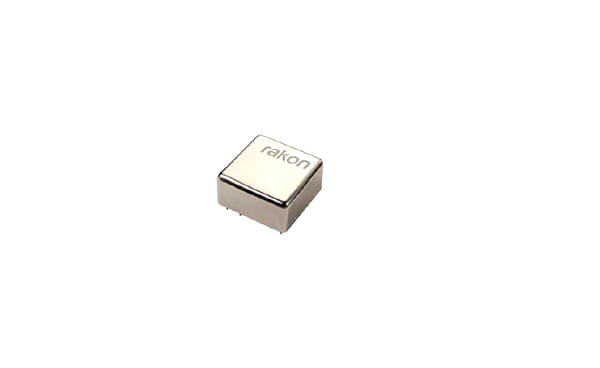

RAKON小尺寸恒温晶振OCXO

频率：10.000000MHz(10-500MHz)

电压：12V

精度：0.1PPb

波形：正弦波

相噪：-165bBc/-1KHz

温度：-55to105°

尺寸：36*27mm

ROX3627T3-10.00MHZ

ROX2525T5-10.00MHZ

ROX5252T1-10.00MHZ

ROX5242T2-10.00MHZ

联系我们18926758761

立即购买

Mercury? IC and Small Form Factor OCXO
APPLICATIONS: Basestation, Enterprise Networking, Network Timing and Synchronisation (IEEE1588, SyncE), Small Cell.
Model	Package	Frequency Range	Frequency Stability	Aging	Phase Noise
RFPO40	9.7 x 7.5 x 4.3 mm	5 - 50 MHz	±10 ppb	±2 ppm max./1 year	For a 12.8 MHz carrier:
.			(-20 to 70 °C)	±5 ppm max./10 years	-143 dBc/Hz @ 1kHz
			±20 ppb		-152 dBc/Hz @ 10kHz
			(-40 to 85 °C)
RFPO45	9.7 x 7.5 x 4.3 mm	10 - 26 MHz	±10 ppb	±1 ppm max./1 year	For a 12.8MHz carrier:
.			(-20 to 70 °C)	±3 ppm max./20 years	-143 dBc/Hz @ 1kHz
			±20 ppb		-152 dBc/Hz @ 10khz
			(-40 to 85 °C)
RFPO50	14.6 x 9.7 x 6.2 mm	5 - 50 MHz	±10 ppb	±2 ppm max./1 year	For a 12.8 MHz carrier:
.			(-20 to 70 °C)	±5 ppm max./10 years	-143 dBc/Hz @ 1kHz
			±20 ppb		-152 dBc/Hz @ 10kHz
			(-40 to 85 °C)
RFPO55	14.6 x 9.7 x 6.2 mm	10 - 26 Mhz	±10 ppb	±1 ppm max./1 year	For a 12.8MHz carrier:
.			(-20 to 70 °C)	±3 ppm max./20 years	-143 dBc/Hz @ 1kHz
			±20 ppb		-152 dBc/Hz @ 10khz
			(-40 to 85 °C)
RFPO60	20.7 x 13.08 x 8.65 mm	5 - 50 MHz	±10 ppb (-20 to 70 °C)	±2 ppm max./1 year	For a 12.8MHz carrier:
.			±20 ppb (-40 to 85 °C)	±5 ppm max./10 years	-143 dBc/Hz @ 1kHz
					-152 dBc/Hz @ 10khz
RFPO65	20.7 x 13.08 x 8.65 mm	10 - 26 MHz	±10 ppb	±1 ppm max./1 year	For a 12.8MHz carrier:
.			(-20 to 70 °C)	±3 ppm max./20 years	-143 dBc/Hz @ 1kHz
			±20 ppb		-152 dBc/Hz @ 10khz
			(-40 to 85 °C)
