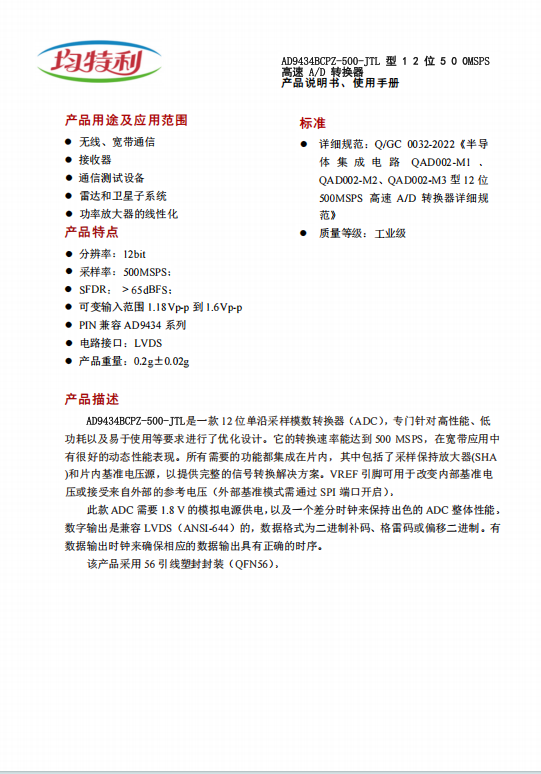

AD9434CPZ-500

Product usage and application scope
Wireless and broadband communication
● Receiver
● Communication testing equipment
Radar and satellite subsystems
Linearization of power amplifier
Product Features
Resolution: 12 bits
Sampling rate: 500MSPS:
SFDR: >65dBFS:
● Variable input range I. 18Vpp to 1.6VpP
PIN compatible with AD9434 series
Circuit interface: LVDS
Product weight: 0.2g ± 0.02g

standard
Detailed specification: Q/GC 0032-2022 "Semiconductors
Integrated Circuit QAD002-MI
QAD002-M2, QAD002-M3 type 12 position
Detailed specifications for S00MSPS high-speed A/D converter
Fan "
Quality grade: Industrial grade
