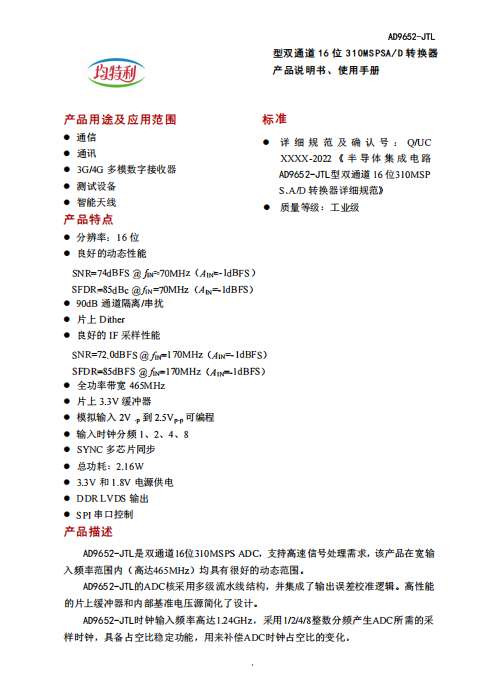

AD9652

Product usage and application scope
● Communication
communication
3G/4G multi-mode digital receiver
● Testing equipment
smart antenna
Product Features
Resolution: 16 bits
Good dynamic performance
SNR=74dBFS @fw=-70MHz(Aw=-IdBFS)
SFDR= 85dBc@Jn =70MHz (AIN=-IdBFS)
90dB channel isolation/crosstalk
Dither on the film
·Good IF sampling performance
SNR= 72.0dBFS@J =170MHz(AN-IdBFS)
SFDR= 85dBFS@Jn =I70MHz(AN-IdBFS)
Full power bandwidth 465MHz
● on-chip 3.3V buffer
● Analog input 2V, up to 2.5V, programmable
● Input clock frequency division 1, 2, 4, 8
● SYNC multi chip synchronization
Total power consumption: 2.16W
● 3.3V and I.8V power supply
DDRLVDS output
● SPI serial port control
