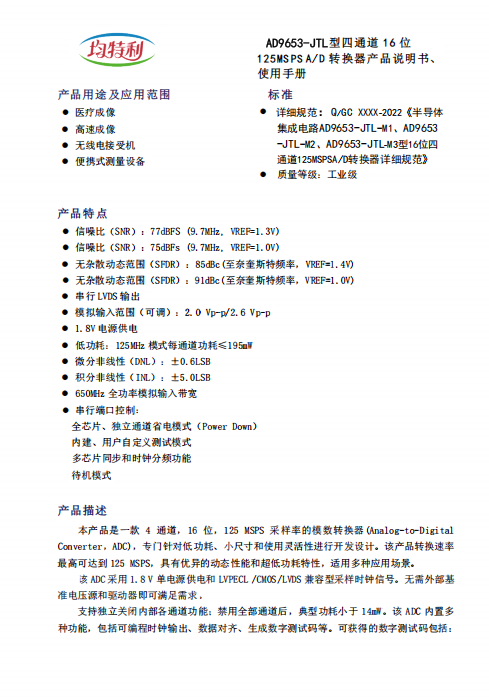

AD9653

Product usage and application scope
medical imaging
High speed imaging
Radio receiver
Portable measuring equipment

Product Features
Signal to Noise Ratio (SNR): 77dBFS (9.7MHz, VREF=1.3V)
Signal to Noise Ratio (SNR): 75dBFs (9.7MHz, VREF=1.0V)
● Stray free dynamic range (SFDR): 85dBc (up to Nyquist frequency, VREF=1.4V)
● Stray free dynamic range (SFDR): 91dBc (up to Nyquist frequency, VREF=1.0V)
Serial LVDS output
● Analog input range (adjustable): 2.0Vp-p/2.6 Vp-p
1.8V power supply
Low power consumption: 125MHz mode, power consumption per channel<195mW
Differential Nonlinear (DNL): ± 0.6L.SB
Integral nonlinearity (INL): ± 5.0LSB
650MHz full power analog input bandwidth
Serial port control:
Full chip, independent channel power-saving mode (Power Down)
Built in, user-defined testing mode
Multi chip synchronization and clock division function
standby mode
