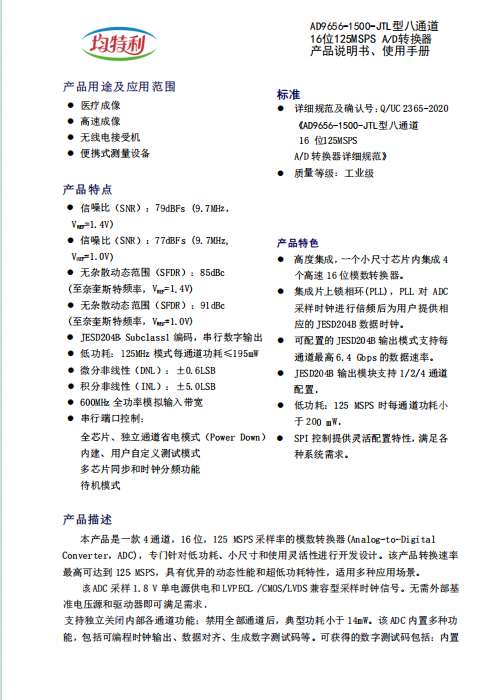

AD9656-1500

Product usage and application scope
Medical imaging
● High speed imaging
Radio receiver
● Portable measuring equipment

Product Features
Signal to Noise Ratio (SNR): 79dBFs (9.7MHz,
Vw=1.4V)
Signal to Noise Ratio (SNR): 77dBFs (9.7MHz,,
Vaw=l.0V)
● Non spurious dynamic range (SFDR): 85dBc
(Nyquist frequency, Va=1.4V)
● Non spurious dynamic range (SFDR): 91dBc
(To Nyquist frequency, Ve=1.0v)
JESD204B Subclass Encoding, Serial Digital Output
Low power consumption: 125MHz mode, power consumption per channel<195mW
Differential Nonlinear (DNL): ± 0.6LSB
Integral nonlinearity (INL): ± 5.0LSB
60MHz full power analog input bandwidth
● Serial port control:
Full chip, independent channel power-saving mode (PowerDown)
Built in, user-defined testing mode
Multi chip synchronization and clock division function
standby mode
