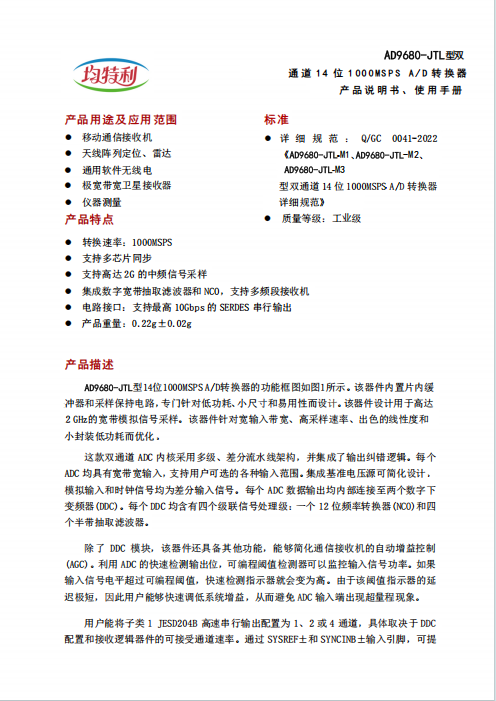

AD9680

Product usage and application scope
Mobile communication receiver
Antenna array positioning, radar
General software defined radio
Extremely wide bandwidth satellite receiver
Instrument measurement

Product Features
Conversion rate: 1000MSPS
Support multi chip synchronization
Supports up to 2G intermediate frequency signal sampling
Integrated digital broadband extraction filter and NCO, supporting multi band receivers
Circuit interface: Supports SERDES serial output up to 10Gbps
Product weight: 0.22g ± 0.02g
